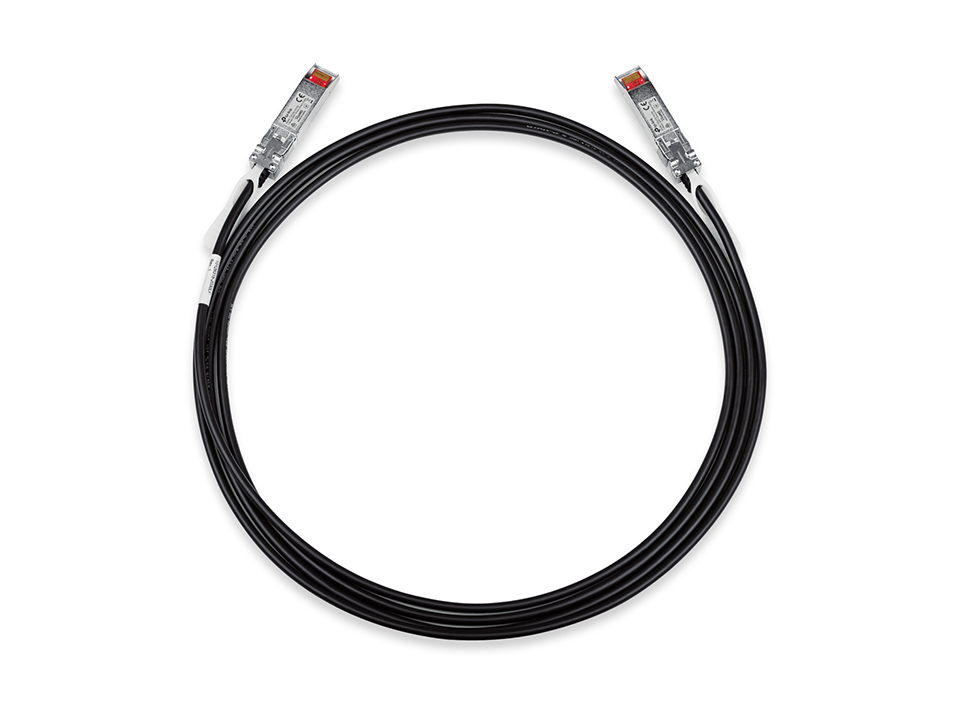

TP-Link JETSTREAM 1M DIRECT ATTACH SFP+ CABLE TXC432 CU1M
$599.00 inc. 9% GST
1M Direct Attach SFP+ Cable
- SFP+ connector on both sides
- Drives 10 Gigabit Ethernet (1m distance)
Out of stock
TP-Link TXC432-CU1M Compatible Direct Attach SFP+ Cable (Passive, 1M, 30AWG)
This TP-Link TXC432-CU1M compatible 10G SFP+ cable is suitable for use with TP-Link 10GbE switches, routers, and media converters. It is programmed and tested at the factory, allowing it to be mixed and deployed with TP-Link OEM high-speed Twinax cables for seamless network performance and interoperability. It supports the bandwidth transmission requirements as defined by 10 Gigabit-Ethernet (10GBase-CU), 8G Fiber Channel (FC) and 10G Fiber Channel over Ethernet (FCoE).
Features
? Functionally identical to TP-Link TXC432-CU1M
? Support for multi-gigabit data rates up to 10.5Gbps
? I/O Connector designed for high-speed differential signal applications
? Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
? Single 3.3V power supply
? Operating temperature range: 0 to 70?C
? RoHS Compliant and Lead-Free
?
Specification
| ? OEM Part Number | TXC432-CU1M | ??Optcore Part Number | SFP-10G-DAC-P1M-TPL |
| ? Form Factor | SFP+ DAC Cable | ? Data Rate | 10.5Gb/s |
| ? Passive or actively equalized? | Passive | ? Supply Voltage | 3.3V |
| ? Cable Length | 1 m | ? Cable impedance | 100 ? |
| ? Cable?Type | Twinax | ? Wire Gauge | 30AWG |
| ? Minimum cable bend radius | 25 mm | ? Cable Jacket Type | PVC |
| ? Connector | SFP+/SFP+ | ? Digital Diagnostic?Monitoring | N/A |
| ? Environment | Operating: 0?C to 70?C Storage: -40?C to 85?C |
? Weight | 0.1 kg |
| ? Application | Storage Area Networks( SAN)Network Attached Storage
The switched fabric I/O High-density connections between networking equipment Data center cabling infrastructure |
? Compliance | SFF-8472,SFF-8431IEC/EN 61000-4-2
MIL-STD -883E, |
