TP-Link 18PORT GIGABIT RACKMOUNT SW W/ 16PORT POE+ TL SG1218MP
$349.00 inc. 9% GST
18-Port Gigabit Easy Smart Switch with 16-Port PoE+
- 16? PoE+ gigabit RJ45 ports, 2? gigabit non-PoE RJ45 ports and 2? combo gigabit SFP slots.
- PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.*
- Port Priority?is able to?guarantee?the quality of sensitive application?like video monitor.
- PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
- Intelligent power management protects the switch from overload.
- QoS ensures smooth traffic for latency sensitive applications.
- IGMP Snooping optimizes multimedia traffic delivery,?such as?IPTV.
Out of stock

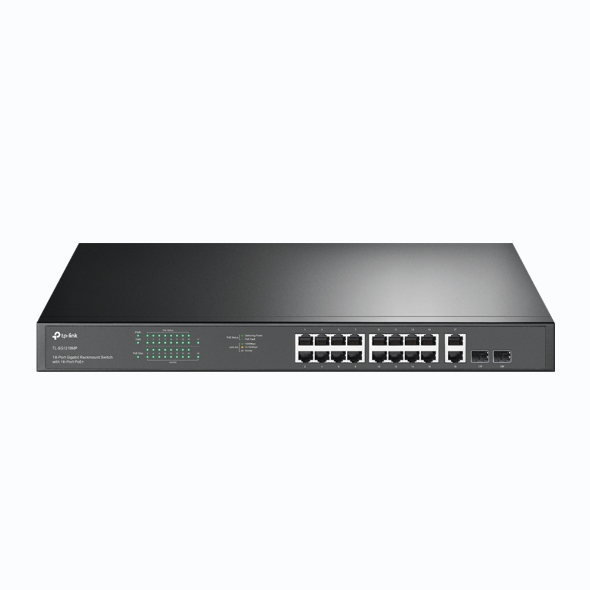

Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, Multi-Purpose PoE Switch with Powerful Performance
JetStreamTL-SG1218MP
- ?250 W PoE Budget*
- ?Gigabit Ports
- ?Plug and Play
- ?QoS for Traffic
Prioritization - ?Intelligent Power
Management - ?Durable Metal Casing
- ?Wide Operating
Temperature

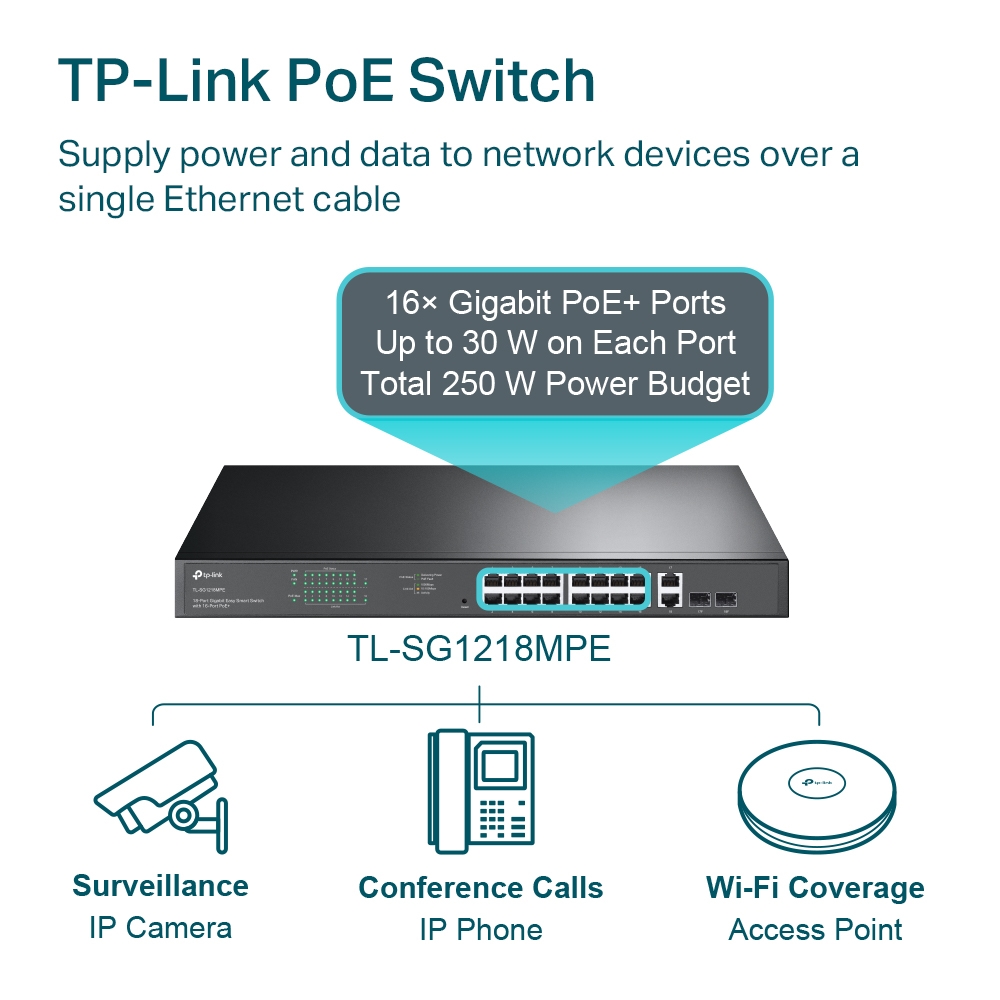

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16? gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
16? Gigabit PoE+ Ports
Up to 30 W on Each Port
Total 250 W Power Budget
TL-SG1218MP
Router
Internet
IP Camera
IP Phone
Access Point
Plug and Play, No Configuration Required
-
Plug In
-
Connect Devices
IP CameraIP phoneAccess PointsInternetTL-SG1218MP
-
Enjoy
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports? power to ensure high-priority ports? power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0?50?) with reliability.
- ?Durable Metal Casing
- ?Wide Operating
Temperature - ?Rackmount
- ?Green Technology
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Specification:
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface | ? 16? PoE+ gigabit RJ45 ports ? 2? gigabit non-PoE RJ45 ports ? 2? combo gigabit SFP slots |
| Network Media | ? 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) ? EIA/TIA-568 100? STP (maximum 100m) ? 100BASE-TX: UTP category 5, 5e cable (maximum 100m) ? EIA/TIA-568 100? STP (maximum 100m) ? 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) ? EIA/TIA-568 100? STP (maximum 100m) ? 1000BASE-X MMF, SMF |
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| Power Supply | 100?240 VAC, 50/60 Hz |
| PoE+ Ports(RJ45) | ? Standard: 802.3at/802.3af compliant ? PoE Ports: Ports 1?16 ? PoE Power Budget: 250 W |
| Dimensions ( W x D x H ) | 17.3 ? 7.1 ? 1.73 in. (440 ? 180 ? 44 mm) |
| Mounting | 19″ 1U rack mountable |
| Max Power Consumption | ? 21.4 W (no power device connected) ? 286.6 W (with 250 W power devices connected) |
| Max Heat Dissipation | ? 73.0 BTU/h (no PD connected) ? 977.4 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Advanced Functions | ? Compatible With IEEE 802.3af/at Compliant PDs ? 802.1p/DHCP QoS ? Mac Address Auto-Learning And Auto-Aging ? IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Jumbo Frame | 10 KB |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | ? TL-SG1218MP ? Installation Guide ? Power Cord ? Rackmount Kit ? Rubber Feet |
| Environment | ? Operating Temperature: 0?50 ?C (32?122 ?F) ? Storage Temperature: -40?70 ?C (-40?158 ?F) ? Operating Humidity: 10?90% RH non-condensing ? Storage Humidity: 5?90% RH non-condensing |
