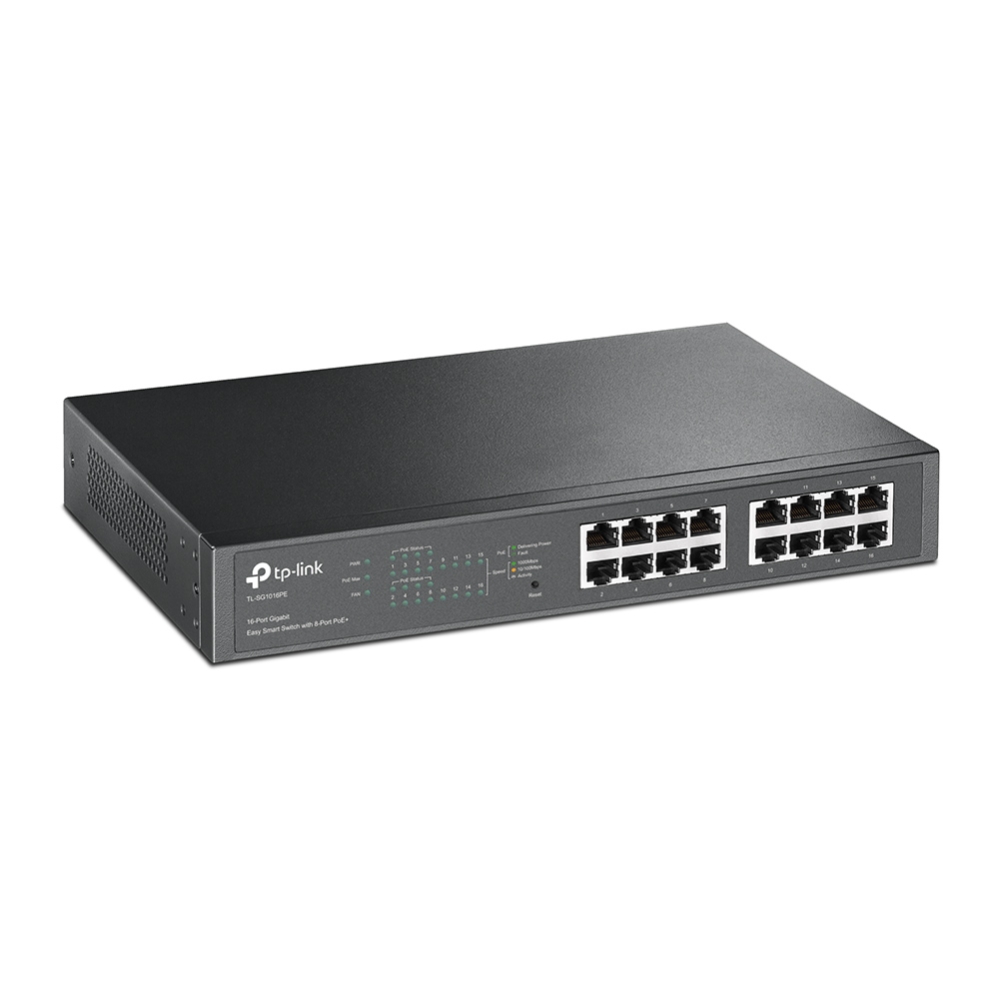

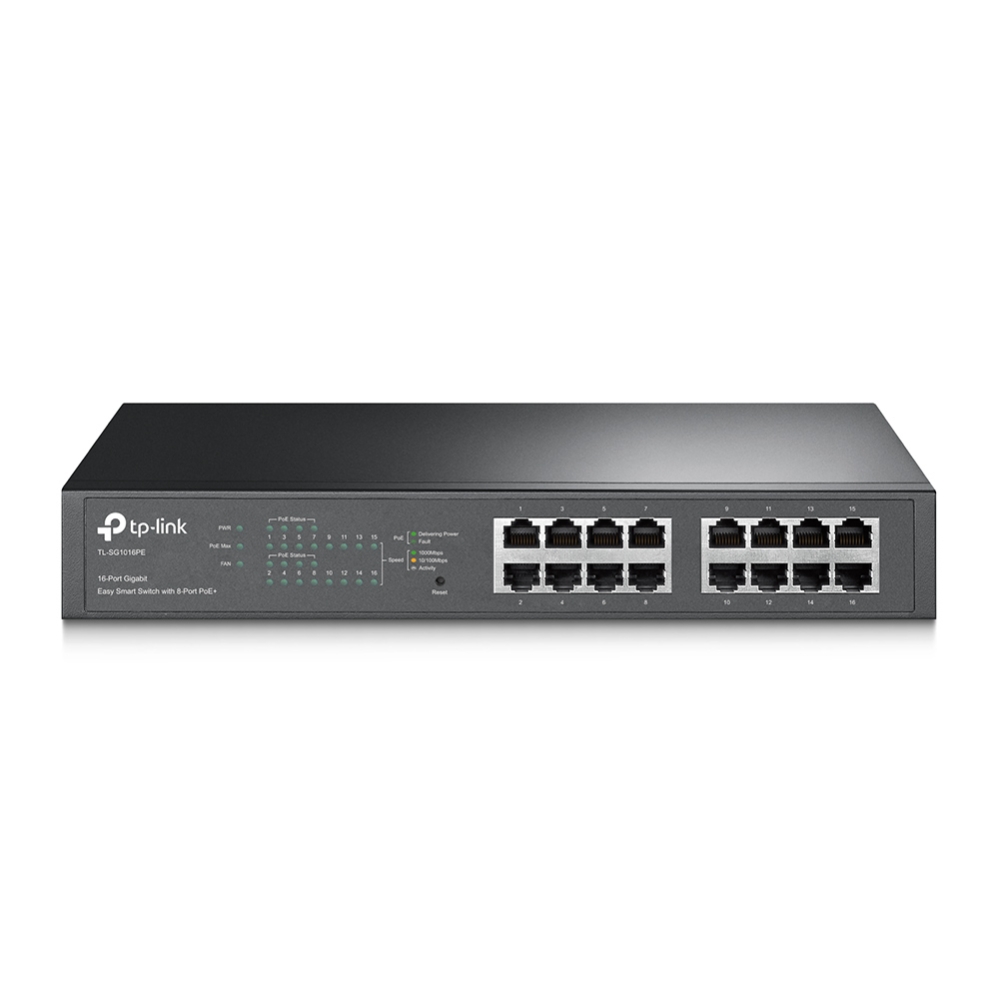

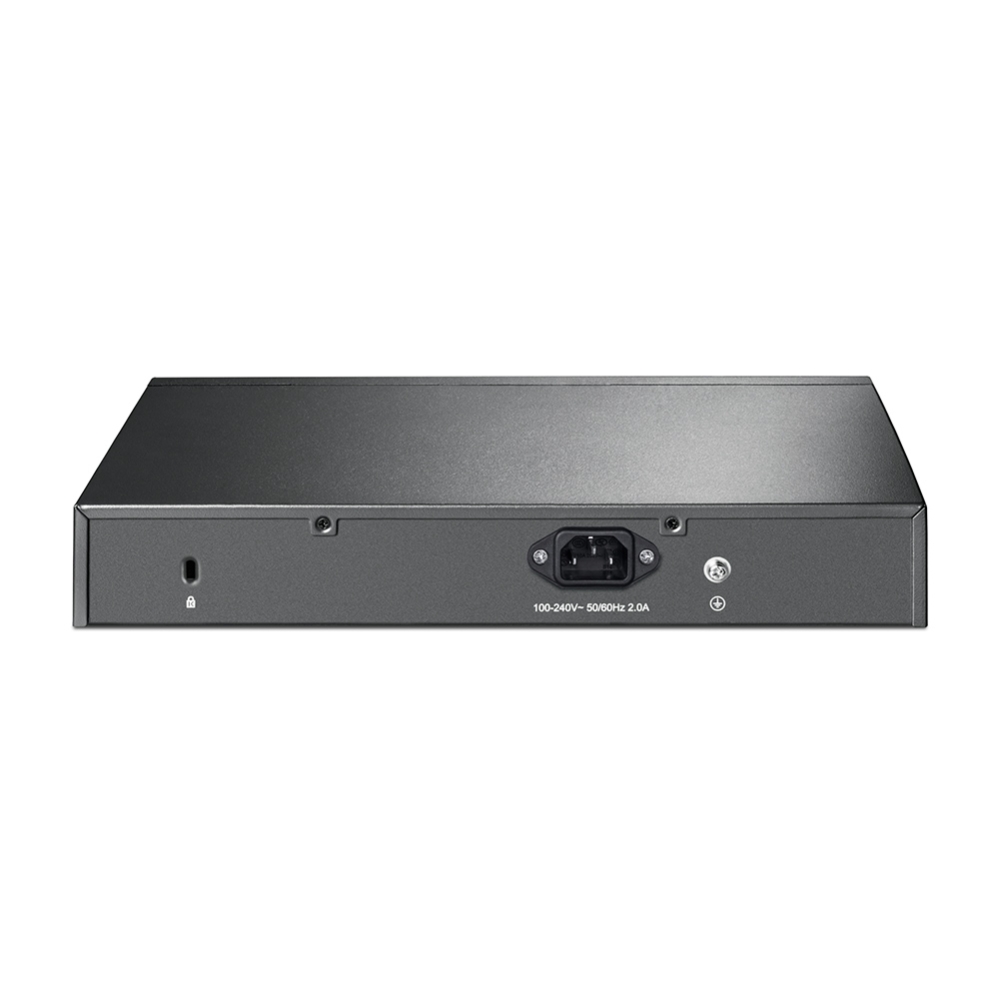

TP-Link 16PORT GIGA EZ SMART SWITCH W/ 8PORT POE+ TL SG1016PE
$289.00 inc. 9% GST
16-Port Gigabit Easy Smart Switch with 8-Port PoE+
- 16? 10/100/1000Mbps RJ45 ports
- Equipped with 8? PoE+ supported ports to transfer data and power over a single cable
- With a total PoE power budget of 150 W,* up to 30 W per port
- Works with IEEE 802.3af/at compliant devices
- Automatically reboots?your dropped or unresponsive PoE-powered devices with PoE Auto recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
1 in stock
What This Product Does
How This Product Works
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
Overload Arrangement
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices? power consumption is greater than or equal to 150 W, a priority will be arranged among the 8?PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 6?are using 30 W (maximum power per port is 30 W), the system power is 150 W?in total (PoE max LED will be green if all PoE PDs power consumption is >= 150W). If there is an additional PD inserted to Port 5 with 20 W?then the system will cut off Port 6 to protect the system, this means Port 1, 2 ,3, and 4?will use 120 W, and Port 5 will use 20 W, and no power will be supplied to Port 6.
Easy To Use
TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your network.
specification:
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 16? 10/100/1000 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100? STP (maximum 100m) |
| Fan Quantity | 1 |
| Physical Security Lock | Yes |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1 to Port 8 PoE Power Budget: 150 W |
| Dimensions ( W x D x H ) | 11.6?7.1?1.7 in (294?180?44 mm) |
| Mounting | Rack Mountable/ Desktop |
| Max Power Consumption | 8.8 W (220 V/50 Hz with no PD connected) 172.26 W (220 V/50 Hz with 150 W PD connected) |
| Max Heat Dissipation | 30.01 BTU/h (220 V/50 Hz with no PD connected) 587.41 BTU/h (220 V/50 Hz with 150 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.8 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| PoE | PoE Management Extend Mode PoE Auto Recovery |
| Management | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1016PE Power Cord Installation Guide Rackmount Kit Rubber Feet |
| System Requirements | Microsoft? Windows? for running Utility |
| Environment | Operating Temperature: 0?40 ? (32?104 ?) Storage Temperature: -40?70 ? (-40?158 ?) Operating Humidity: 10?90% non-condensing Storage Humidity: 5?90% non-condensing |
